What is the concept of an air conditioning insulation pipe and the address to buy an air conditioning insulation pipe

air conditioning insulation pipe is an indispensable material on air conditioners. Here, Nanoflex will introduce you to general information about what an air conditioner insulation pipe is, its structure, role and how to use it on air conditioners.
The concept of air conditioning insulation pipes

What is the concept of air conditioning insulation pipe? Insulation pipes are tubular insulation materials, used to wrap around the gas-conducting copper pipe of an air conditioner.

The structure of the insulation pipe is in the style of a closed cell structure with extremely good water resistance and fire spread in case of fire.

What is air conditioning insulation? Accordingly, this is an indispensable type of refrigeration material during the construction, repair and maintenance of air conditioners.

Insulation pipes are made from flexible plastic (Polyethylene) on the outside, inside covered with an additional layer of insulation foam (LDPE) with the prerequisite of non-toxic and environmentally friendly.

The advantage of this type of material is that it has a high level of thermal insulation, a low coefficient of thermal conductivity, so it ensures safety during construction, installation and use.

Due to the use of high-tech materials, the weight of the insulation pipe is quite low but the durability is good, easy to install, wasteless and recyclable.

On air conditioners, insulation pipes play a role in fire resistance, water resistance, insulation and heat retention radiating from copper pipes, protecting copper pipes, helping gas to circulate better while increasing the operating efficiency of the air conditioner.

Double insulation foam air conditioning pipe

The air conditioning tube double insulation foam is created from LDPE virgin plastic beads under the high temperature of the plastic compressor. The reason this material is put into the production of double insulation foam air conditioning pipes is because they are easily processed, customized in size and thin to suit each need.\

Double insulation foam air conditioner pipes are used for some specific purposes, if dual insulation is not used, users can use 2 single insulation at the same time with the same use. However, dual insulation will be convenient and easy to maintain

Styrofoam is processed quickly, with little cost, but can be reused many times. In the case of decomposition also does not pollute the environment with a short decomposition period. The product is completely modern.

Double insulation air conditioning, air conditioning

Air-conditioned double insulation is a insulation that uses 2 double pipes and sticks together. Double insulation is used to wrap 2 parallel pipes on the air conditioner at the same time but still ensure heat and insulation for the above 2 pipes.

In terms of design materials, structure and use of air-conditioning double insulation pipes, they are similar to other insulation pipes. They only differ in features of use and serve different needs.

Double insulation has a low coefficient of thermal conductivity, a high degree of thermal insulation as well as good water resistance for the use of wrapping copper pipes on air conditioners

How to wrap air conditioner insulation

Before coming to the instructions on how to wrap the air conditioner, we need to make sure to choose the right insulation for the temperature, humidity and part to be heated. Concrete

For air conditioning copper pipes

Type of heating air pump (on 2-way air conditioners): Using heat-resistant Politen foam, it is best to withstand the threshold of 120 degrees Celsius.

Cooling air pump only (on 1-way air conditioners): Use normal Politen foam but must ensure that it withstands the threshold of 70 degrees Celsius.

For condensate pipes

Use regular Politen foam and make sure to withstand temperature thresholds from -70 degrees Celsius to 80 degrees Celsius.

Choose the right air conditioning insulation pipe size before buying and wrapping copper pipes

How to insulate the air conditioner of the flared joint of the indoor unit

+ Step 1: Wrap insulation around the flared joint for liquid and gas pipes

+ Step 2: Tighten the ends of the insulation with a wire.

+ Step 3: For the flared pipe connection on the side of the gas pipe, tighten it by wrapping the cylinder.

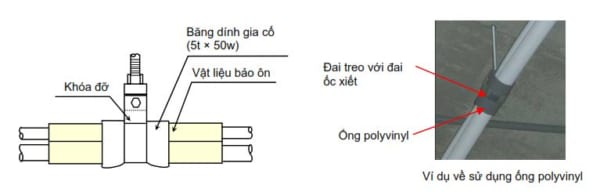

How to wrap the air conditioner insulation lock support

+ Step 1: Wrap the insulation around the support lock

+ Step 2: Reinforce the insulation with specialized adhesive tape because the support tubes when horizontal often push the cover back, putting the force on a point. Such reinforcement will help spread the weight and avoid damage during use. In addition to adhesive tape, you can support it with a polyvinyl tube to increase the rigidity at the support point.

It is recommended to additionally fix it with adhesive tape at the support lock position

How to reinforce the insulation of junctions

+ Step 1: Wrap the insulation around the joint

+ Step 2: Calculate the contraction of the insulation in the future and should take the insulation residue 200mm longer than normal to ensure that after shrinking, the insulation will fit snugly. In addition, it is necessary to reinforce the joint part with masking tape.

How to reinforce insulation in curved segments

+ Step 1: Cut insulation to reinforce the curved section, note that the number of cutting places should be minimized and preferably a cutting place so that the insulation is not too many joints.

+ Step 2: Reinforce insulation to ensure that after covering the curved section, the two insulation sides continue to perform solidification in straight pipes.

When insulating at curved sections, you need to be aware of the level of bearing and coverage at these locations

Important notes when maintaining air conditioning:

+ Limit reuse of insulation pipes because they do not ensure safety in both electrical and fire protection. Used insulation pipes can be damaged, broken or broken and affect transmission and heat resistance.

+ Separate insulation of 2 parts, gas pipe and liquid pipe because the properties of these 2 paths are completely different. It is recommended to use double insulation of air conditioning pipes.

+ Insulation at joint locations after welding, coupling,…

It is recommended to comply with the standards of air conditioning installation because when mistaken or incorrectly performed, it will lead to many errors during use such as water leakage, reducing the level of cooling and causing the air conditioner to consume more electricity.

Air conditioning insulation size

In terms of size, insulation pipes have many different types from 6 to 25 cm, depending on the needs, purposes of use as well as the type of air conditioner that you should choose the right pipe size.

In terms of color, insulation pipes come in a variety of colors. During installation, you should use a combination of many colors together to easily identify each type of functional wire. Later, maintenance or repair is also easier.

In terms of use, insulation pipes are commonly used in industry such as insulation for hot water pipes, insulation of copper pipes on air conditioners, insulation or heat retention, sound insulation, sports handles,…

Insulation has many types with different thicknesses, depending on the size of the item to be insulation, you should choose the right one, avoid too tight or too loose

In terms of specifications, before being put on the market, all types of air-conditioning insulation pipes of manufacturers need to meet the following standards:

+ Fire propagation resistance, self-extinguishing fire: V-0, HB.

+ Density: 50 – 80 kg/m3.

+ Thermal conductivity coefficient: 0.054 W / mKC.

+ Thickness of plastic pipe layer: ranges from 1 to 3 mm depending on the type.

+ Thickness of insulation: variety of sizes with different insulation capabilities, depending on the location, the degree of heat dissipation that we should choose the right one.

+ Diameter: ranges from 6 to 25 cm depending on the type.

+ Length: 2 meters.

The phenomenon of water-conditioning insulation pipes

Water flow of the air conditioner insulation pipe occurs when your air conditioner is experiencing one of the following problems:

+ Leaking water pipes cause water to spill out and directly affect the insulation pipe.

+ The process of installing the air conditioner is technically incorrect, resulting in the air conditioner insulation pipe flowing water.

Note, these are the main causes, in addition there will be some more but you will be less likely to experience them. Right now, you should look to professional air conditioning maintenance services for assistance.

The installation of the wrong technique, the wrong size of the insulation pipe,… are the main causes that lead to the insulation pipe being watery. This affects the ability to operate, cool and consume power on the air conditioner

The solution to fix this situation step by step is as follows:

+ Step 1: Check the pipe for a leak. If so, repair or replace the pipe.

+ Step 2: Check if the air conditioning insulation at the water flowing site is damaged. If so, go back to the air conditioning pipeline.

In case the insulation leaks water due to incorrect installation, you should contact the air conditioning installation unit for assistance. This is the case for those who use installation services at unreliable contractors.

In order to never have the same situation, customers should buy air conditioners at reputable contractors, here, King Air Conditioner will support the installation service to ensure the safest and fastest.

Air conditioning insulation insulation pipe price

Depending on the thickness, the price of air conditioning insulation pipes will have a difference, but this difference is not much. In fact, the price of air-conditioning insulation insulation pipes is also quite cheap and fluctuates between several tens of thousands.

Copper pipe quotes and air conditioning insulation fluctuate, depending on the size, there will be a difference but also quite cheap. The most important thing here is the installation technique and choosing the right type of insulation

Copper pipe quotes and air conditioning insulation fluctuate, depending on the size, there will be a difference but also quite cheap. The most important thing here is the installation technique and choosing the right type of insulation

Before buying an air conditioner insulation pipe, you need to determine the type of air conditioner you are using to choose the right thickness insulation pipe.

.Besides, on the market there are quite a few types of insulation made of rubber, or with flexible plastic and foam. You should also choose the right and good quality insulation to ensure the level of safety and permanence during use.
.
